Schwarzbeck EMC 测试设备分类
　 Antennas
　EMC测试天线/EMI接收天线/EMS发射天线/场地校准天线/无线电测向监测天线/常规用途天线		   　 LISN Line Impedance Stabilisation Networks
　 人工电源网络 / 线路阻抗稳定网络
　 Antenna Masts / Tripods / Adapters
　 天线塔 / 三脚架 / 附件		 　 Near field probes
　 近场探头
　 CDN 0.15 - 230 MHz, IEC 1000-4-6, EN 61000-4-6
　 耦合 / 去耦网络		 　 Pulse Generators
　 脉冲发生器
　 EMI-Receivers
　 EMI接收机		 　 Striplines
　 带状线
　 Helmholtz Coils
　 亥姆霍兹线圈		 　 Accessories
　 其他附件
　 Absorbing clamps / braid current blocking Clamps
　 电磁钳 / EM-钳 / 耦合钳 / 吸收钳 / 表面电流吸收钳 / 铁氧体钳		 　 Dummy Lamps according to CISPR 15 EN55015
　 灯具测试用模拟灯 / 基准灯
　

　 　　　　
Typ EMI测试天线 / EMS发射天线

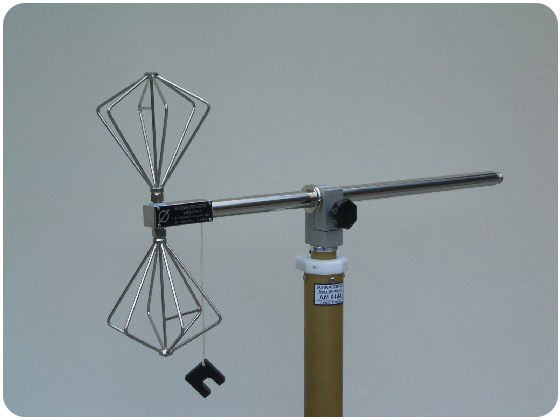

  双锥天线 天线柄 / 天线平衡——不平横变换器
VHA 9103 B Holder / Balun without telescopic dipole elements (for use with Biconical BBA 9106, BBAL 9136, BBAK 9137, BBVK 9138, FBAB 9177) [Foto of VHA 9103 B with BBA 9106]
HFBA 9122 HF-VHF Broadband balun / holder (0.1) 0.15 - 300 (500) MHz especially to measure very high field strength. BBAL 9136, BBA 9106, BBAK 9137, BBVU 9135 or BBUK 9139 biconical elements required.
VHBA 9123 Antenna Holder / Balun for Bicon. Broad Band Antenna (e.g. BBA 9106, BBAL 9136, BBAK 9137), 50 / 200 W, (better antenna factor below 50 MHz, also EMV application 100 W [图片]
VHBB 9124 Antenna Holder / Balun for Bicon. Broad Band Antenna 50:200 Ohm, (better antenna factor for lower frequency end) for use with BBA 9106, BBAL 9136, BBAK 9137, BBVK 9138, FBAB 9177, FBAL 9178 [电压驻波比]
VHBC 9133 Antenna holder / balun 50:200 Ohm, 1 kW, for biconical or collapsible elements (BBA 9106, BBAL 9136, BBFA, Triangle, FBAA, FBAB, FBAL 9178) [电压驻波比]
VHBD 9134 High power antenna holder / balun 50:200 Ohm, 2.5 kW, 20-200 MHz for biconical or collapsible elements BBFA 9146, N-connector [电压驻波比]
VHBD 9134 OPT 7/16 Option: 7/16 connector
UBAA 9114 Broadband Balun/Holder 4:1, 30-1000 MHz, 5 W, low loss, BBVU 9135, BBUK 9139, BAOC 9216 or BBOC 9217 elem. Required [电压驻波比] [图片]
UBAA 9115 Broadband Balun/Holder 4:1, 30-1000 MHz, 5 W, extremely high symmetry, BBVU 9135, BBUK 9139, BAOC 9216 or BBOC 9217 elem. Required [电压驻波比] [图片]
  双锥天线 天线振子

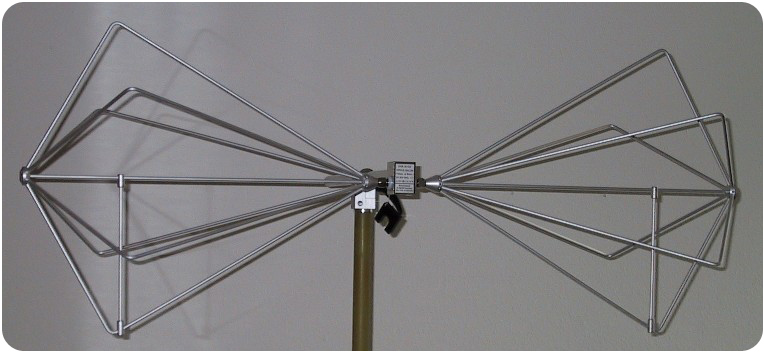

BBA 9106 Biconical Elements, 30-300 MHz, requires VHA 9103 B, VHBC, VHBB or VHBA [图片]
BBAL 9136 Biconical Elements, 20-200 MHz, requires VHA 9103 B, VHBC, VHBB or VHBA
BBAK 9137 Biconical Elements, 45-450 MHz broad band, requires VHA 9103, VHBB or VHBA
BBVK 9138 Biconical Elements, 60-600 MHz broad band, requires VHA 9103, VHBB or VHBA
BBVU 9135 Biconical Elements, (30)100-1000 MHz (like VUBA), for UBAA 9114/9115
BBUK 9139 Biconical Elements, 160-1200 MHz broad band (like UBA), for UBAA 9114/9115
　 双锥天线 大型天线振子
BBFA 9146 Large collapsible aluminium Elements with extensions up to 4 m
FBAB 9177 Collapsible Biconical Elements 30 – 300 MHz (instead of BBA 9106)
FBAL 9178 Large Collapsible Biconical Elements 20 – 200 MHz (instead of BBAL 9136)
BAOC 9216 Open Conical Elements, 160-1200 MHz broad band, for UBAA 9114/9115
BBOC 9217 Open Conical Elements, (30)100-1000 MHz broad band, for UBAA 9114/9115
  对数周期天线
UHALP 9108 A Log.-Periodic Antenna, alum. Tubing, 250 – 2400 MHz, low loss, 1 kW power [尺寸] [方向图] [修正系数] [电压驻波比] [发射电场] [图片]
VUSLP 9111 Log.-Periodic Antenna, alum. Tubing, 200 – 2300 (4000) MHz, low loss, 1 kW power [方向图] [修正系数] [电压驻波比] [发射电场] [图片]
VUSLP 9111 B Log.-Periodic Antenna, alum. Tubing, (180) 200 - 3000 (4000) MHz, low loss, 1 kW power [修正系数] [发射电场]
VUSLP 9111 E Log.-Per. Antenna, aluminium tubing, 1 kW power, 70 (65)-3000 (4000) MHz. Recommended adapter: KG 9201. EN 61000-4-3 [修正系数] [电压驻波比] [发射电场]
VULP 9118 A Log.-Per. Antenna, aluminium tubing, 1 kW power, 180 -1500 (2000) MHz [修正系数] [电压驻波比] [发射电场]
VULP 9118 B Log.-Per. Antenna, aluminium tubing, 1 kW power, 160-1500 (2000) MHz [修正系数] [电压驻波比] [发射电场] [图片]
VULP 9118 C Log.-Per. Antenna, aluminium tubing, 1 kW power, 100-1400 (2000) MHz [方向图] [电压驻波比]
VULP 9118 D Log.-Per. Antenna, aluminium tubing, 1 kW power, (80) 95 –1500 (1800) MHz [修正系数] [电压驻波比] [发射电场]
VULP 9118 E Log.-Per. Antenna, aluminium tubing, 1 kW power, 75 (50)-1500 MHz. [方向图] [电压驻波比] [发射电场]
VULP 9118 E special Nearly identical gain as VULP 9118 E but with reduced width. Special = folded longest elements. [修正系数] [发射电场] [图片]
VULP 9118 F Log.-Per. Antenna, al. tubing, end discs, 1 kW power, 55 -1800 MHz
VULP 9118 G Log.-Per. Antenna, al. tubing, end discs, 1 kW power, 45 -1500 MHz [修正系数] [发射电场]
VULP 9118 D/E/F/G Spezial Nearly identical gain as VULP 9118 D/E/F/G but with reduced width. Extra charge added to the basic model. pecial = folded longest elements
VULP 9118 H Log.-Per. Antenna, aluminium tubing, 1 kW power, (26) 30 - 1500 (1800) MHz, N-connector gain 6 dBi, 电压驻波比<3, width 5.2 m, length 4.8 m, weight 35 kg. [方向图] [使用手册]
VULP 9118 H Option WP Option: grey coating and sealing for outdoor use
USLP 9142 UHF – SHF Log. – Per. Antenna, 0.7 – 5 (8) GHz, 50 W [尺寸] [方向图] [电压驻波比] [发射电场]
USLP 9143 UHF – SHF Log. – Per. Antenna, (0.25) 0.3 – 5 (7) GHz, 50 W [尺寸] [方向图] [修正系数] [电压驻波比] [发射电场]
USLP 9143 B UHF – SHF Log. – Per. Antenna, (0.18) 0.2 – 7 (8) GHz, 50 W [修正系数]
ESLP 9145 UHF – EHF Log. – Per. Antenna, (0.7) 1- 18 (20) GHz, N-connector. A new low attenuation cover allows measurements with radome. For older models with S/N<184 check manual! [方向图] [电压驻波比] [发射电场] [图片]
XSLP 9142 Dual Polarized UHF-SHF Log.-Per. Antenna, 800 MHz – 3(5) GHz, 50 W [方向图] [图片]
XSLP 9143 Dual Polarized UHF-SHF Log.-Per. Antenna, 300 MHz – 3(5.5) GHz, 50 W
  堆叠对数周期宽带天线 / 双对数周期天线

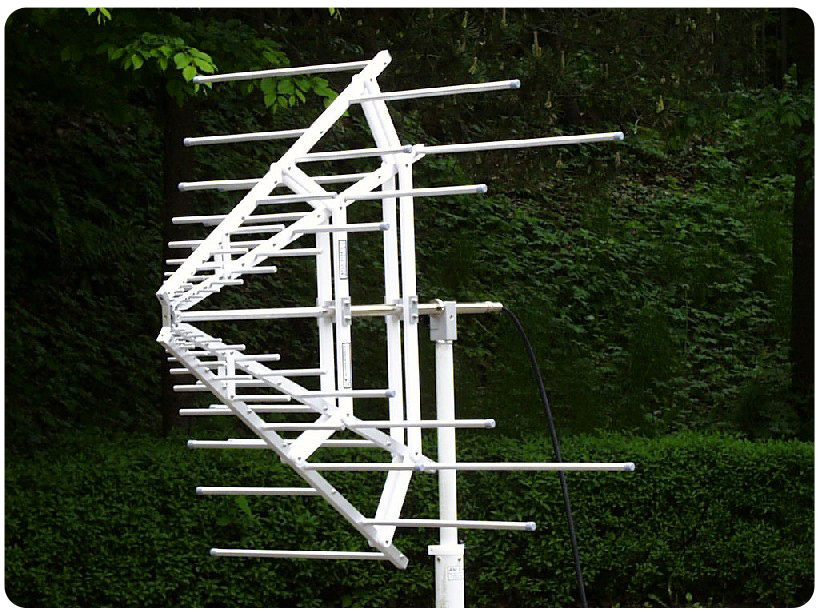

STLP 9128 C Stacked double Log.-Per. Antenna, typ. gain: 9 dBi, alum. Tubing, high power, (150) 200 - 1500 (4000) MHz, N-connector 1 kW [方向图] [修正系数] [电压驻波比] [图片]
STLP 9128 C Opt 7/16 Option: with 7/16-connector 3 kW
STLP 9128 C Opt. 13-30 Option: with [13-30型接头] limited to 2500 MHz but higher power up to 8 kW including adapter similar to AA 9202 [图片]
STLP 9128 E Stacked double Log.-Per. Antenna, typ. gain: 9 dBi, alum. Tubing, high power, (65) 80 -1500 (3000) MHz, N-connector 1 kW [方向图] [修正系数] [电压驻波比]
STLP 9128 E Opt. 7/16 Option: with 7/16-connector 3 kW
STLP 9128 E spezial Like STLP 9128 E but with folded longest elements and smaller structure angle. Antenna diameter < 150 cm [图片]
STLP 9128 E spezial Option 7/16 Option: with 7/16 connector 3 kW
STLP 9148 Stacked double Log.-Per. Antenna, typ. gain: 9 dBi (0.7) 1 – 18 (20) GHz, N-connector [方向图] [发射电场]
STLP 9149 Stacked double Log.-Per. Antenna for IEC 61000-4-3 typ. gain 10.3 dBi, (0,6) 0,7 – 9 (10,5) GHz, N-connector female.　 [方向图] [修正系数] [发射电场]
STLP 100-500 Stacked double Log.-Per. Antenna, typ. Gain: 11 dBi, alum. Tubing, high power, (75) 100 – 500 (550) MHz, 13/30 (f)-connector 5 kW, dimensions: 166x178x402 cm, 52 kg
  双锥对数周期天线（复合天线）
VULB 9160 TRILOG Super Broadband test Antenna, (25) 30 – 1000 (1700) MHz, 10 W [尺寸] [方向图] [修正系数] [电压驻波比]
VULB 9161 TRILOG Super Broadband test Antenna, 30 – 1000 (2000) MHz, 1 kW [尺寸] [修正系数] [电压驻波比] [发射电场]
VULB 9161 SE TRILOG Super Broadband test Antenna, 30 – 1000 (2000) MHz, 1 kW with short Triangle elements, diameter < 150 cm. [修正系数] [尺寸]
VULB 9163 TRILOG Super Broadband test Antenna, (25) 30 – 3000 (4000) MHz, 100 W (200 W) [方向图] [修正系数1] [修正系数2] [电压驻波比] [发射电场]
VULB 9165 LOGBICON Super Broadband test Antenna, (20) 30 – 1500 (2000) MHz, 10 W, BBAL Elem. [尺寸] [方向图] [修正系数] [电压驻波比] [图片]
VULB 9166 LOGBICON Super Broadband test Antenna, 20 – 1500 MHz, 1 kW, BBAL El. [尺寸] [方向图] [修正系数] [电压驻波比] [发射电场]
VULB 9168 TRILOG Super Broadb. Test Antenna, (25) 30-1000 (2000) MHz, 10 W, reduced width, diameter < 1.5 m. [尺寸] [方向图] [修正系数] [电压驻波比]
Opt. Triext. Option for VULB 9163, VULB 9161, VULB 9161 SE: angled Triangle Extensions to increase the gain by typ. 6 dB below 70 MHz.
  双锥天线
RS 16 Vertical polarized microwave biconical antenna (0,5) 1 – 6 (8,5) GHz with omni directional H-plane pattern.
RE 1790 Vertical polarized VHF- UHF biconical antenna (170) 230 – 1000 (1100) MHz with omni directional H-plane pattern.
RE 4590 Vertical polarized VHF- UHF biconical antenna (330) 450 – 1000 (1100) MHz with omni directional H-plane pattern.
SBA 9113 Small Biconical Microwave Antenna 0.5 – 3 GHz, 20 W. miniversion on request CIS/A/648/CDV CISPR16-1-4:2007-02 Ed. 2.0 Site validation above 1 GHz [方向图] [电压驻波比] [发射电场] [图片]
SBA 9112 Small Biconical Microwave Antenna (1) 3 – 18 GHz, 10 W including transport case. CIS/A/648/CDV CISPR16-1-4:2007-02 Ed. 2.0 Site validation above 1 GHz. E-plane pattern, H-plane pattern, mini version on request [电压驻波比] [发射电场] [图片]
UBA 9116 Biconical UHF broad band antenna (160) 300 -1000 (1100) MHz [图片(含手提箱CCA)] [电压驻波比] [图片]
VUBA 9117 Biconical VHF-UHF broad band antenna (30) 150 -1000 MHz
  偶极子天线
VHA 9103 VHF Half-Wave Dipole with 2 sets of telescopic elements, 30-300 MHz
UHA 9105 Tuneable UHF – Half – Wave Dipole, 300 – 1000 MHz w. telescopic elements [长度] [图片]
UHA 9125 C Tuneable UHF – Half – Wave Dipole with EMI – Balun, 0.75 – 2 GHz with 4 sets of elements, LE = 180, 140, 100, 80 mm. [方向图] [电压驻波比]
UHA 9125 D Tuneable UHF – Half – Wave Dipole with EMI – Balun, 1.0 – 3 (4) GHz with 6 sets of elements, LE = 140, 114, 90, 72, 60, 48 mm [电压驻波比] [图片]
  精密偶极子天线
VHAP VHF Precision Dipole 30-300 MHz, 2 sets of telescopic elements (mostly required in pairs) CISPR 16-1-5 [使用手册]
UHAP UHF Precision Dipole 300-1000 MHz (VHAP & UHAP mostly required in pairs) CISPR 16-1-5 [使用手册]
CCA Carrying and storing case for 2 x VHAP or 2 x UHAP, cases for other antennas also available.
VHAPA Calibration adaptor for VHAP Precision Dipoles
UHAPA Calibration adaptor for UHAP Precision Dipoles
  FM和TV波段天线
FT 01 S Additional elements for enhanced FM broadcast directivity [参数1], [参数2]
FT 01 UKW FM broadcast and TV bands antenna, detachable, 47 – 860 (1000) MHz, high directivity
  宽带喇叭天线

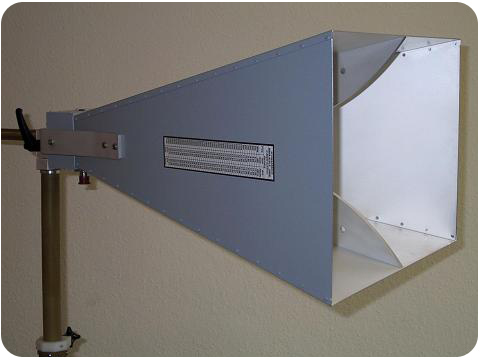

BBHA 9120 A Broad-Band Horn Antenna (0.8) 1 – 5 (10) GHz, N-connector [尺寸] [方向图] [电压驻波比] [发射电场] [使用手册] [图片]
BBHA 9120 B Broad-Band Horn Antenna 1 – 10 GHz, N-connector [尺寸] [方向图] [电压驻波比] [发射电场] [图片]
BBHA 9120 C Broad-Band Horn Antenna 2 – 18 (20) GHz, SMA-connector [方向图] [发射电场] [图片]
BBHA 9120 D Broad-Band Horn Antenna (0,8) 1 – 18 GHz, N-connector [尺寸] [方向图] [修正系数] [电压驻波比] [发射电场] [使用手册] [图片]
BBHA 9120 E Broad-Band Horn Antenna 0.5 – 6 GHz, N-connector [尺寸] [方向图] [修正系数] [电压驻波比] [发射电场] [图片]
BBHA 9120 F Broad-Band Horn Antenna 0.2 – 2 GHz, N-connector [发射电场]
BBHA 9120 F Opt 7/16 Option: with 7/16-connector 3 kW
BBHA 9120 G Broad-Band Horn Antenna 0.4 – 2.8 GHz, 7/16-connector
BBHA 9120 LF Broad-Band Horn Antenna 0.7 – 6 GHz, N-connector [方向图] [电压驻波比] [发射电场] [图片]
BBHA 9120 L3F Broad-Band Horn Antenna 0.5 – 2.8 GHz, N-connector [尺寸] [方向图] [电压驻波比] [发射电场]
BBHA 9170 Broad-Band Horn Antenna 15 – 26.5 (40) GHz, SMA-compatible connector [电压驻波比] [图片]
HA 9250-48 Pyramidal Horn Antenna, 4 – 8 GHz, 7/16-connector, 20 dBi
BBHX 9120 E Dual polarized Broad-Band Horn Antenna 0.4 – 10 GHz, N-connectors [方向图]
  标准增益天线
SGA... Standard Gain Antennas, typ. 9.8 dBi gain, 60° pattern, accurately calibrated (2 half-wave dipoles in front of a l x l reflector, design frequencies 440-2000 MHz SGA 900 SGA 1800
  有源天线
VAMP 9243 Vertikal active rod antenna, 9 kHz - 30 MHz, BNC, reduced noise floor, with mounting nut for AM 9144 and rechargeable battery.
VAMP 9243 Opt. GP Option: Aluminium-Groundplane, 0.6 x 0.6 m
VAMP 9243 Opt. ACS 410 Option: Charger ACS 410
VAMP 9243 Opt. VT Option 20 dB plug in divider to measure high field strength [图片]
EFS 9218 Active Electric Field Probe with Biconical Elements, 9 kHz - 300 MHz, 12 μV/m - 65 V/m, const. antenna factor typ. 46 dB/m high symmetry, built in rechargeable battery [使用手册]
EFS 9218 Opt. ACS 410 Option: Automatic charger ACS 410 for EFS 9218
EFS 9218 Opt. VV Option: built in broadband preamplifier. Antenna factor 20 dB/m, disengageable. [图片]
EFS 9219 Active antenna holder, high sensitivity (1 μV/m … 3 V/m), 9 kHz-30 MHz, BBUK 9139 biconical elements required.
EFS 9219 Opt. Rohr Option: Isolating tube with braid chokes for EFS 9219
EFS 9219 Opt. ACS 410 Option: Automatic charger Ansmann ACS 410 for EFS 9219
IABF 9216 Isotropic field strength measurement unit for use with spectrum analyzer or receiver, 9 kHz – 3 GHz.[图片]
IABF 9216 Opt. Haube Option: Weather protection cover
  无源天线
VPMP 9242 Vertical passive rod antenna, 10 - 40 MHz, possible rods: FBAB 9177, FBAL 9178, BBA 9106, BBAL 9136 ( rod must be ordered extra)
VPMP 9242 Opt. GP Option: Aluminium groundplane 0.6 x 0.6 m
  无源磁场天线，发射用环天线
HFRA 5148 Circular Transmitting Loop Antenna diam. 180 mm, 1 turn
HFRA 5150 Transmitting Loop Antenna w. broad band transformers and 50 Ohm load 5 W included (with external dummy load max. 100 W), size 0.6m x 0.6 m, 9 kHz – 30 MHz, 3/8” camera thread [参数]
HFRA 5151 same as model 5150, but reduced size 0.45 x 0.45 m [参数]
HFRA 5152 Circular Transmitting Loop Antenna diam. 250 mm, 0-3 MHz, 1 W
HFRA 5153 Circular Transmitting Loop Antenna diam. 180 mm, 0-20 (30) MHz, 5 W
HFRA 5154 Circular Transmitting Loop Antenna diam. 100 mm, 0.1 – 30 MHz, Transformer 50 Ohm, 0.5 W
HFRA 5155 Circular Transmitting VHF – UHF loop antenna, diam. 50 mm,
HFRA 5156 Circular Transmitting Loop Antenna diam. 50 mm, 0-5 MHz, 2 W, 10 turns
HFRA 5157 Circular Transmitting Loop Antenna diam. 50 mm, 0-20(30) MHz, 3 W, 2 turns
HFRA 5158 Circular Transmitting Loop Antenna diam. 180 mm, 0-2 MHz, 5 W, 10 turns
HFRA 5159 Circular Transmitting Loop Antenna diam. 250 mm, 0-0.5MHz, 5 W
HFRA 5170 Cal. Loop 3 W, diam. 100 mm, 0-30 MHz, 1 turn, 250 Ohm
  无源磁场天线，接收用环天线
HFRAE 5160 Receiving VHF – UHF loop antenna, diam. 50 mm, 2-300 MHz, Transformer [图片]
HFRAE 5161 HF RX Loop, diam. 100 mm, 70 k-120 MHz, 1 turn, Transformer [图片]
HFRAE 5162 VLF-HF RX Loop, diam. 250 mm, 50 k-30 MHz, 1 turn, Transformer [图片]
  CISPR15 灯具测试3环天线
HXYZ 9170 3-dimensional large loop antenna, diam. 2 m, acc. EN 55015 / CISPR 15, Socket and Coaxial switch recommended [图片]
HXYZ 9170 Sockel Socket and mounting equipment for large loop HXYZ 9170
HXYZ 9170 Umschaltbox 3 in one coaxial switch for manual / remote operation including cable set (3 BNC cables with braid current blockers) for large loop HXYZ 9170
HFCD 9171 Calibration Balun / Dipole for HXYZ 9170 (recommended accessory: AM 9144)
  有源环天线 / 磁场探头
FMZB 1516 Loop Field Strength Measuring System, works with EMI Rcvrs. Analyzers 9 kHz – 30 MHz, constant antenna factor of 20 dB(1/m), mains operated. [图片]
FMZB 1516 Opt. Akku Option: Built-in rechargeable battery pack and automatic charger
HMDA 1545 Handheld magnetic field meter, LCD, acustic fieldstrength indication with tone generator, 9 kHz- 50 (80) MHz, 200μA/m … 1 A/m, 6 x Type AA NiMH. [使用手册] [图片]
HMDA 1545 Opt. ACS 410 Option: ACS 410 charger for HMDA 1545
HFS 1546 Active magnetic Field Probe with shielded 50-mm-Loop, 150 kHz – 400 MHz. [短身版本] available on request. [使用手册]
FMZB 1517 Calibrated hand-held Magnetic Loop Antenna, 9 kHz – 30 MHz, 150 mm diam. for EMI Rcvrs. (measures H-field, fictive E-field level up to 20 V/m (53 mA/m), 20 dB/m Antenna Factor)
FMZB 1527 Calibrated hand-held Magnetic Loop Antenna, 9 kHz – 30 MHz, 150 mm diam. for EMI Rcvrs. max. fictive E level 150 V/m (0.4 A/m), AF: 40 dB/m
FMZB 1537 Magnetic field meter 9 kHz – 30 MHz, requires either EHMG 1623 or UEW 9210 with EMI-Receiver / Analyser, max. fictive E level 75 V/m (0.2 A/m),
FMZB 1538 Magnetic field meter 9 kHz – 30 MHz, max. fictive E level 75 V/m (0.2 A/m), separate power supply cable.
FMZB 1547 Magnetic field meter 9 kHz – 30 MHz, 20A/m, requires UEW 9210 with EMI-Receiver / Analyser
FMZB 1548 Magnetic field meter 9 kHz – 30 MHz, 20A/m, with separate power supply cable
UEW 9210 DC separator for coaxial power supply of probes FMZB 1537, FMZB 1547
SNUE 9211 AC/DC Adaptor / Power supply 220V AC/15V DC for UEW 9210, 3.5 mm jack
HMG 1621 Handheld magnetic field meter 5 Hz – 10 kHz, 0.003 ... 30 A/m, requires probe
HMG 1621 Opt. Sonde 5 Option: Probe 5 Hz – 10 kHz for HMG 1621
HMG 1621 Opt. Sonde 50 Option: Probe 50 Hz – 10 kHz for HMG 1621

[返 回]
