Typ	人工电源网络/线路阻抗稳定网络
NSLK 8126	V-LISN, 9 kHz - 30 MHz, 50 μH + 5 Ohm \|\| 50 Ohm 4 x 16/25 A, 2 x 16 A Schuko and 4 x 16 A CEKON socket, Artificial Hand.
NSLK 8126 Opt. Rcfm	Option rcfm: Remote Control without power supply for Schwarzbeck receivers [图片]
NSLK 8126 Opt. Rcps	Option rcps: Remote Control with built in Power Supply for others than Schwarzbeck receivers
NSLK 8127	V-LISN, 9 kHz - 30 MHz, 50 μH + 5 Ohm \|\| 50 Ohm, 2 x 16 A Schuko socket, Artificial Hand.[图片]
NSLK 8127 Opt.rcfm	Option rcfm: Remote Control without power supply for Schwarzbeck receivers
NSLK 8127 Opt.rcps	Option rcps: Remote Control with built in Power Supply for others than Schwarzbeck receivers
NSLK 8127 Opt.PLC	Option: Power Line Communication, according to EN 50065-1, selectable ranges: 3 – 9 kHz, 9 – 95 kHz, 95 kHz – 30 MHz.
NSLK 8128	V-LISN, 9 kHz - 30 MHz, 50 μH + 5 Ohm \|\| 50 Ohm 4 x 32/50 A, 2 x 16 A Schuko and 4 x 32 A CEKON socket, Artificial Hand.
NSLK 8128 Opt.rcfm	Option rcfm: Remote Control without power supply for Schwarzbeck receivers
NSLK 8128 Opt.rcps	Option rcps: Remote Control with built in Power Supply for others than Schwarzbeck receivers
CEKON	CEKON CEE three- phase current connector plug jack 16 A and 32 A.
SCHUKO	Adapter Schuko plug, receptacle for Great Britain, Singapore, Hong Kong, Switzerland, Australia, New Zealand, USA, Canada, Japan, Taiwan...
NNLK 8121	V-LISN, 9 kHz - 30 MHz, 50 μH + 5 Ohm \|\| 50 Ohm, 4 x 50 (100) A, wing terminals (For continuously 100 A add the options cont. high current and cooling fans!) [图片] [参数]
NNLK 8121 Opt.rcfm	Option rcfm: Remote Control without power supply for Schwarzbeck receivers
NNLK 8121 Opt.rcps	Option rcps: Remote Control with built in Power Supply for others than Schwarzbeck receivers
NNLK 8121 Opt. Hochstrom	Option: cont. high current, additional terminals to bypass the 250 μH chokes, provides less voltage drop and less heating.
NNLK 8121 Opt.400/700V	Option: 400/700 V Voltage to Neutral / Voltage between lines
NNLK 8121 Opt. Lüfter	Option: Cooling Fans
NNLK 8129	V-LISN, (9) 150 kHz – 30 MHz, 50 μH \|\| 50 Ohm, 4 x 200 (300) A, wing terminals, low voltage drop. [图片] [参数]
NNLK 8129 Opt.rcfm	Option rcfm: Remote Control without power supply for Schwarzbeck receivers
NNLK 8129 Opt.rcps	Option rcps: Remote Control with built in Power Supply for others than Schwarzbeck receivers
NNLK 8129 Opt.400/700V	Option: 400/700 V Voltage to Neutral / Voltage between lines
NNLK 8129 Opt.Lüfter	Option: Cooling Fans
NNLK 8130	V-LISN, (9) 150 kHz – 30 MHz, 50 μH \|\| 50 Ohm, 4 x 400 (500) A, wing terminals, low voltage drop, cooling fans. [图片] [参数]
NNLK 8130 Opt.rcfm	Option rcfm: Remote Control without power supply for Schwarzbeck receivers
NNLK 8130 Opt.rcps	Option rcps: Remote Control with built in Power Supply for others than Schwarzbeck receivers
NNLK 8130 Opt.400/700V	Option: 400/700 V Voltage to Neutral / Voltage between lines
	Single path LISN (Automotive) CISPR 25 / ISO 7637　　单路LISN（汽车测试专用）CISPR25 / ISO7637 / GB18655
NNBM 8125	LISN 5 μH \|\| 50 Ohm, 70 (100) A, single path, with switchable 50 Ohm termination and 10 dB attenuator. [图片]
NNBM 8125 Opt. ISO 7637-2	Option: 1 Mikrofarad capacitor on the mains side switchable. Switched on the LISN conforms to CISPR 25, switched off the LISN is suitable for transient measurements acc. to ISO 7637-2.
NNBM 8126 A	LISN 5 μH \|\| 50 Ohm, 70 (100) A, DC 500 V, AC 50 Hz 250 V, AC 400 Hz 110 V.
NNBM 8126 A Opt. DO-160	Calibration up to 400 MHz according to DO-160

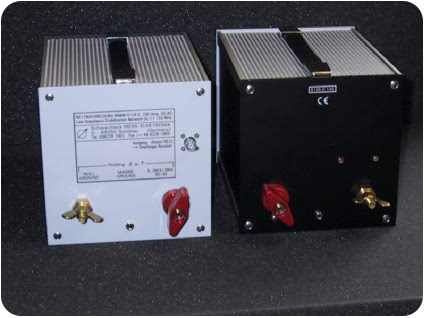

NNBM 8126 D	LISN 5 μH \|\| 50 Ohm, 200 A single path. [图片]
NNBM 8126 F	LISN 5 μH \|\| 50 Ohm, 400 A single path.
NNBM 8125 BCI	LISN 5 μH \|\| 50 Ohm, 70 (100) A single path, no switchable attenuator, switchable 50 Ohm 50 Watt load for bulk-current injection test.
NNBM 8125 BCI Opt. 200A	Option: 200 A [图片]
	Two path LISN (Automotive) CISPR 25 / ISO 7637　双路LISN（汽车测试专用）CISPR25 / ISO7637 / GB18655
NNBM 8126 G	LISN 5 μH \|\| 50 Ohm, 70 (100) A, two paths, two BNC-connectors [图片]
	LISN according to MIL 461 MIL 462　　符合军标MIL-STD-461/462, GJB151A / 152A要求的LISN
NNBL 8225	V-LISN (9) 150 kHz - 100 MHz, 50 μH + 5 Ohm \|\| 50 Ohm, 20 A, 50 Hz AC 250 V, single path, Mil. Std. 461/462, CISPR 16
NNBL 8226	V-LISN (9) 150 kHz - 100 MHz, 50 μH + 5 Ohm \|\| 50 Ohm, 70 (100) A, 50 Hz AC 250 V, single path, Mil. Std. 461/462, CISPR 16
NNBL 8226-HV	V-LISN (9) 150 kHz - 100 MHz, 50 μH + 5 Ohm \|\| 50 Ohm, 70 (100) A, 50 Hz AC 800 V, single path, Mil. Std. 461/462, CISPR 16
NNBL 8226-2	V-LISN (9) 150 kHz - 100 MHz, 50 μH + 5 Ohm \|\| 50 Ohm, 70 (100) A, 50 Hz AC 250 V, two path, Mil. Std. 461/462, CISPR 16 [图片]
	Universal LISN　　通用LISN
NDTV 8160	Universal Delta-, T-, V-LISN [使用手册]
	ISN / T-Networks　　阻抗稳定网络 / T型网络
NTFM 8131	T-ISN 150 Ohm asymmetric 50 Ohm unsymmetric, 2-wire, 400 V AC, 9 kHz – 30 MHz, CISPR 22 D1/EN55015-2002
NTFM 8132	T-ISN 2-wire, 10 kHz - 30 MHz, CISPR 22 D1 [图片]
NTFM 8134	4 wire ISN, two unscreened single balanced pairs, CISPR 22 D4
NTFM 8136	4 wire ISN, two unscreened single balanced pairs, CISPR 22 D2
NTFM 8138	4 wire T-ISN, two unscreened single balanced pairs, CISPR 22 D3
NTFM Adapter	Adapters e.g. wired for ISDN, 1000 BaseT or for self wiring available on request
PB 44	Precision Balun for LCL-measurements on NTFM 813x
	Voltage Probes　　电压探头
TK 9417	HF-Probe, 2.5 kOhm [图片]
TK 9420	High-Voltage-Probe, 1.5 kOhm, 4 pF, 9 kHz – 30 MHz, RF < 30 V
VT 9420	Plug-In divider 1.5 kOhm for TK 9420 probe for determination of disturbance source impedance [图片]
TK 9421	High Power Voltage Probe, 1.5 kOhm, 4 pF, 150 kHz – 30 MHz RF < 100 V
TK 9422	High Power Voltage Probe, 5 kOhm, 4 pF, (9) 150 kHz – 30 MHz RF < 100 V
