灯具测试用模拟灯/基准灯 |
| |
Single
capped twin tube dummy lamps with socket G23 |
| LN G23 |
Socket LN G23 according to figure 4 e CISPR 15, socket
length 47 mm, tube sets of the RS G23/xxx series required. |
| RS G23/85 |
Tube set for LN G23, max. length of lamp acc. to IEC 85 mm,
length of tube 38 mm, Tube diameter 13 mm, 5 W. |
| RS G23/115 |
Tube set for LN G23, max. length of lamp acc. to IEC 115 mm,
length of tube 68 mm, Tube diameter 13 mm, 7 W. |
| RS G23/145 |
Tube set for LN G23, max. length of lamp acc. to IEC 145 mm,
length of tube 98 mm, Tube diameter 13 mm, 9 W. |
| RS G23/215 |
Tube set for LN G23, max. length of lamp acc. to IEC 215 mm,
length of tube 168 mm, Tube diameter 13 mm, 11 W. |
| |
Single
capped quadruple tube dummy lamps with socket G24
|
| LN G24 |
Socket LN G24 according to figure 4 f CISPR 15, socket
length 45 mm, tube sets of the RS G24/xxx series required. |
| RS G24/95 |
Tube set for LN G24, max. length of lamp acc. to IEC 95 mm,
length of tube 50 mm, Tube diameter 13 mm, 10 W. |
| RS G24/130 |
Tube set for LN G24, max. length of lamp acc. to IEC 130 mm,
length of tube 85 mm, Tube diameter 13 mm, 13 W. |
| RS G24/150 |
Tube set for LN G24, max. length of lamp acc. to IEC 150 mm,
length of tube 105 mm, Tube diameter 13 mm, 18 W.
|
| RS G24/170 |
Tube set for LN G24, max. length of lamp acc. to IEC 170 mm,
length of tube 125 mm, Tube diameter 13 mm, 26 W. |
| |
Single
capped twin tube dummy lamps with socket 2G11 |

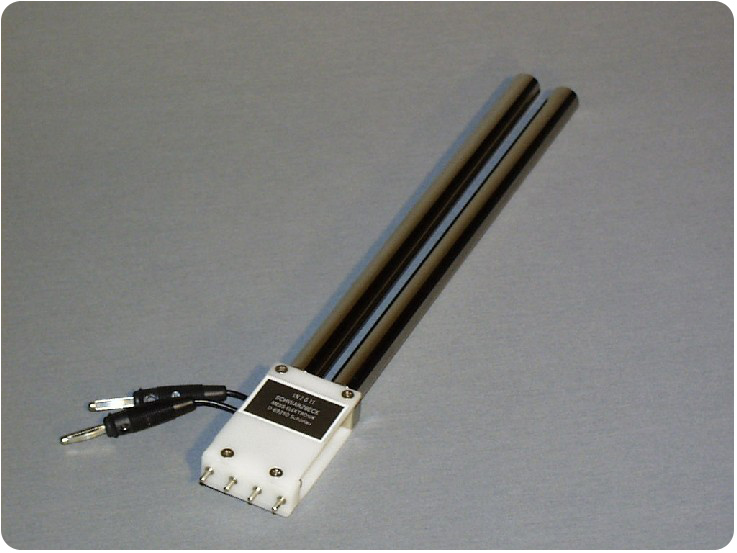

| LN 2G11 |
Socket LN 2G11 according to figure 4 d CISPR 15, socket
length 67 mm, tube sets of the RS 2G11/xxx series required. |
| RS 2G11/225 |
Tube set for LN 2G11, max. length of lamp acc. to IEC 225
mm, length of tube 158 mm, Tube diameter 15 mm, 18 W. |
| RS 2G11/320 |
Tube set for LN 2G11, max. length of lamp acc. to IEC 320
mm, length of tube 253 mm, Tube diameter 15 mm, 24 W. |
| RS 2G11/415 |
Tube set for LN 2G11, max. length of lamp acc. to IEC 415
mm, length of tube 348 mm, Tube diameter 15 mm, 36 W. |
| RS 2G11/535 |
Tube set for LN 2G11, max. length of lamp acc. to IEC 535
mm, length of tube 468 mm, Tube diameter 15 mm, 55 W. |
| |
Linear dummy
lamps 15 mm diameter with socket G5 |

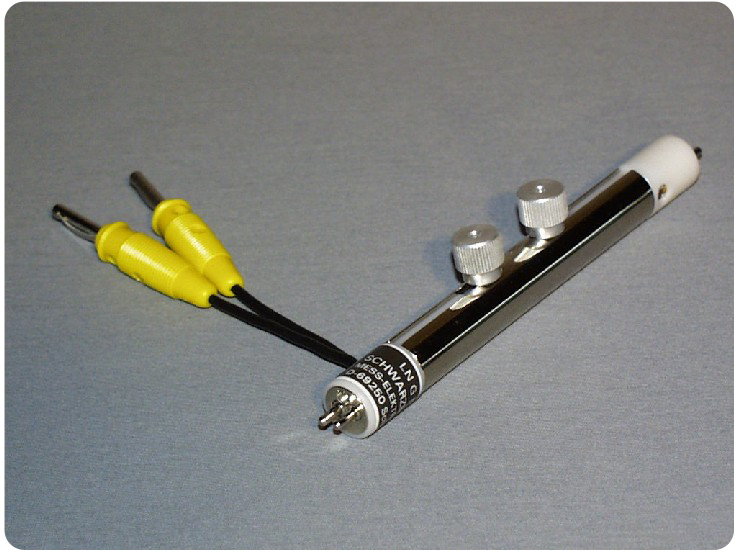

| LN G5 |
Pair of sockets LN G5 according to figure 4 c CISPR 15,
socket length 20 mm each, tube sets of the RS G5/xxx series
required. |
| RS G5/136 |
Tube set for LN G5, max. length of lamp acc. to IEC 136 mm,
length of tube 96 mm, Tube diameter 15 mm, 4 W. |
| RS G5/212 |
Tube set for LN G5, max. length of lamp acc. to IEC 212 mm,
length of tube 172 mm, Tube diameter 15 mm, 6 W. |
| RS G5/288 |
Tube set for LN G5, max. length of lamp acc. to IEC 288 mm,
length of tube 248 mm, Tube diameter 15 mm, 8 W. |
| RS G5/517 |
Tube set for LN G5, max. length of lamp acc. to IEC 517 mm,
length of tube 477 mm, Tube diameter 15 mm, 13 W. |
| RS G5/549 |
Tube set for LN G5, max. length of lamp acc. to IEC 549 mm,
length of tube 509 mm, Tube diameter 15 mm, 14 W. |
| RS G5/849 |
Tube set for LN G5, max. length of lamp acc. to IEC 849 mm,
length of tube 809 mm, Tube diameter 15 mm, 21 W. |
| RS G5/1449 |
Tube set for LN G5, max. length of lamp acc. to IEC 1449 mm,
length of tube 1409 mm, Tube diameter 15 mm, 35 W. |
| |
Linear
dummy lamps 20 mm diameter with socket G13/25 |
| LN G13/25 |
Pair of sockets LN G13 according to figure 4 a CISPR 15,
socket length 75 mm each, tube sets of the RS G13/25/xxx series
required. |
| RS G13/25/438 |
Tube set for LN G13/25, max. length of lamp acc. to IEC
438 mm, length of tube 288 mm, Tube diameter 20 mm, 15 W. |
| RS G13/25/590 |
Tube set for LN G13/25, max. length of lamp acc. to IEC
590 mm, length of tube 440 mm, Tube diameter 20 mm, 18 W. |
| RS G13/25/720 |
Tube set for LN G13/25, max. length of lamp acc. to IEC
720 mm, length of tube 570 mm, Tube diameter 20 mm, 16 W. |
| RS G13/25/895 |
Tube set for LN G13/25, max. length of lamp acc. to IEC
895 mm, length of tube 745 mm, Tube diameter 20 mm, 30 W. |
| RS G13/25/970 |
Tube set for LN G13/25, max. length of lamp acc. to IEC
970 mm, length of tube 820 mm, Tube diameter 20 mm, 36 W. |
| RS G13/25/1047 |
Tube set for LN G13/25, max. length of lamp acc. to IEC
1047 mm, length of tube 897 mm, Tube diameter 20 mm, 38 W. |
| RS G13/25/1200 |
Tube set for LN G13/25, max. length of lamp acc. to IEC
1200 mm, length of tube 1050 mm, Tube diameter 20 mm, 36 W.
|
| RS G13/25/1500 |
Tube set for LN G13/25, max. length of lamp acc. to IEC
1500 mm, length of tube 1350 mm, Tube diameter 20 mm, 58 W. |
| |
Linear
dummy lamps 28 mm diameter with socket G13/38
|
| LN G13/38 |
Pair of sockets LN G13 according to figure 4 a CISPR 15,
socket length 75 mm each, tube sets of the RS G13/38/xxx series
required. |
| RS G13/38/590 |
Tube set for LN G13/38, max. length of lamp acc. to IEC
590 mm, length of tube 440 mm, Tube diameter 28 mm, 20 W. |
| RS G13/38/970 |
Tube set for LN G13/38, max. length of lamp acc. to IEC
970 mm, length of tube 820 mm, Tube diameter 28 mm, 25 W. |
| RS G13/38/1200 |
Tube set for LN G13/38, max. length of lamp acc. to IEC
1200 mm, length of tube 1050 mm, Tube diameter 28 mm, 115 W. |
| RS G13/38/1500 |
Tube set for LN G13/38, max. length of lamp acc. to IEC
1500 mm, length of tube 1350 mm, Tube diameter 28 mm, 140 W. |
| RS G13/38/1800 |
Tube set for LN G13/38, max. length of lamp acc. to IEC
1800 mm, length of tube 1650 mm, Tube diameter 28 mm, 160 W. |
| RS G13/38/2400 |
Tube set for LN G13/38, max. length of lamp acc. to IEC
2400 mm, length of tube 2250 mm, Tube diameter 28 mm, 125 W. |
| |
Single capped twin tube dummy lamps with socket 2G7 |
| LN 2G7 |
Socket LN 2G7, socket length 47 mm, tube sets of the RS 2G7/xxx series required. |
| RS 2G7/85 |
Tube set for LN 2G7, max. length of lamp acc. to IEC 85 mm,
length of tube 38 mm, Tube diameter 13 mm, 5 W. |
| RS 2G7/115 |
Tube set for LN 2G7, max. length of lamp acc. to IEC 115 mm,
length of tube 68 mm, Tube diameter 13 mm, 7 W. |
| RS 2G7/145 |
Tube set for LN 2G7, max. length of lamp acc. to IEC 145 mm,
length of tube 98 mm, Tube diameter 13 mm, 9 W. |
| RS 2G7/215 |
Tube set for LN 2G7, max. length of lamp acc. to IEC 215 mm,
length of tube 168 mm, Tube diameter 13 mm, 11 W. |
| |
U-shape tube dummy lamps with socket 2G13 |
| LN 2G13 |
Socket LN 2G13, socket length 75 mm, tube sets of the RS
2G13/xxx series required. |
| RS 2G13/310 |
Tube set for LN 2G13, max. length of lamp acc. to IEC 310
mm, length of tube 235 mm, Tube diameter 20 mm, 20 W. |
| RS 2G13/607 |
Tube set for LN 2G13, max. length of lamp acc. to IEC 607
mm, length of tube 532 mm, Tube diameter 20 mm, 40 W. |
| RS 2G13/765 |
Tube set for LN 2G13, max. length of lamp acc. to IEC 765
mm, length of tube 690 mm, Tube diameter 20 mm, 65 W. |
| |
Circular dummy lamps |
| LN G10q/28/216 |
Complete circular dummy lamp according to figure 4 b CISPR
15, max. diameter of lamp acc. to IEC 216 mm, Tube diameter 20 mm, 22
W. [图片] |
| LN G10q/32/311 |
Complete circular dummy lamp according to figure 4 b CISPR
15, max. diameter of lamp acc. to IEC 311 mm, Tube diameter 28 mm, 32
W. [图片] |
| LN G10q/32/413 |
Complete circular dummy lamp according to figure 4 b CISPR
15, max. diameter of lamp acc. to IEC 413 mm, Tube diameter 28 mm, 40
W. |
| |
Single pin
linear dummy lamps with socket Fa6 |
| LN Fa6 |
Pair of sockets LN Fa6, socket length 75 mm each, tube sets
of the RS Fa6/xxx series required. |
| RS Fa6/1200 |
Tube set for LN Fa6, max. length of lamp acc. to IEC 1200
mm, length of tube 1050 mm, Tube diameter 28 mm, 32 W. |
| RS Fa6/1500 |
Tube set for LN Fa6, max. length of lamp acc. to IEC 1500
mm, length of tube 1350 mm, Tube diameter 28 mm, 50 W. |
| |
Related equipment |
| Conical Cover |
Test fixture for energy saving lamps with E27 socket
according to figure 7 b CISPR 15 [图片] |
| Conical Cover Option E14 |
Additional adapter E27-E14 to insert E14 lamps into the
conical cover |
|
